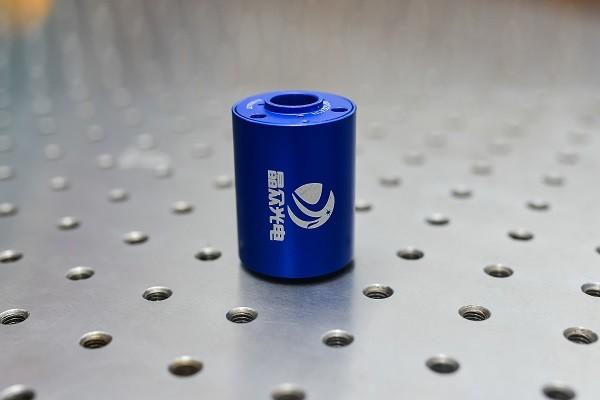

    AR - Coating KDP Pockels Cell Mounting Air Transportation Re - Polishing Service

    AR-Coating, Mounting And Re-Polishing Service DKDP Pockels Cells With Compact Size


    Products Description:


    KD*P (Potassium Dideuterium Phosphate) is the most widely used material for electro-optical applications due to its excellent E-O properties. An electro-optic material such as KD*P can alter the polarization state of light passing through it, when an applied voltage induces birefringence change in the crystal. When used in conjunction with polarizers, the KD*P pockels cell can function as optical Q-switch to generate laser pulses. KD*P is used for applications from UV up to around 1.1 µm where absorption limits its use in active cavities, although it can be useful at longer wavelengths when a few percent of absorption can be tolerated.
    APPLICATION:
    • Industrial laser system
    • Medical Laser system
    • Aesthetic Laser system
    • Military Laser system
    ADVANTAGE:
    • High Extinction Ratio
    • Low Insertion Loss
    • High damage threshold
    • Wide working temperature range
    • Low capacitance
    • Low current Leakage
    • Economically priced and huge OEM discount
    • AR-coating, mounting and re-polishing service
    • Strict quality control
    • Fast delivery
    • Compact size
    • Low absorption
    • Transmission from 400nm to 1100nm
    • Superb technical support always

    SPECIFICATIONS:


    Apertureup to 100x100mm2
    LengthMinimum up to 1 mm,Maximum up to 40mm
    Dimension tolerance±0.1mm
    Deuteration Level>98%
    Parallelism20 arc seconds
    Perpendicularity5 arc minutes
    S/D10/5
    Flatnessλ/8@633nm
    Angle tolerance(degree)0.25°,0.25°
    Chamfer0.2mmx45°
    Chip0.1mm
    Optical Damage Threshold>4GW/cm2@1064nm,20
    λ/4 Voltage<3.6KV@1064nm,20
    λ/2 Voltage<6.4KV@1064nm,20
    Wavelength range300-1100nm
    Extinction Ratio>1200:1
    Capacitance6~10pF@1kHz
    Quality GuaranteeAccording to customer requirements one year under proper use.
